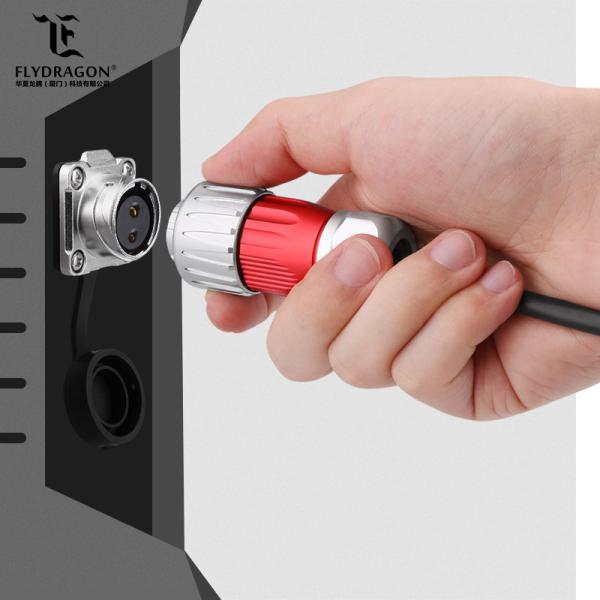

Certificated IP65/IP67 2Pin Metal Bayonet Underwater Circular Connector
DH20 series waterproof connector, with unique wave spring design, standard card slot,rotary
locking type and fashionable design to meet customer’s demands, widely be used in LED display/screen, industrial equipment, stage lighting equipment and other field
Key Features
- Using the alloy external protective material, effectively reduce the external high current generated electromagnetic and signal RF interference
-
Using the military standard three-point spiral lock
-
Optional housing color to meet the needs of different environmental use
-
Optional metal and silica gel material cover to meet the needs of different customer use
-
2-7pin power supply, 9-12pin signal
-
Rated current: 5 A, 12A, 20A
Product details
Type : IP67 electric connector
Number of contacts : 7 Pins
Wire Size : 1.0mm2 ~ 1.5mm2/18~16 AWG
Rated Current : 12A
Rated Voltage : 500V
Contact Termination : Soldering/Crimping
Housing&Insulation material : High-performance engineering plastics
Certificate : CCC/ TUV/ UL
specifications
| PINS | 2 | 3 | 4 | 5 | 7 | 9 | 12 |
| Cable specification | 2.5mm2~4mm2/
14~12 AWG | 1.0mm2~1.5mm2/
18~16 AWG | 0.15mm2~0.2mm2/
26-24 AWG |
| Diameter range | Φ8mm~Φ12mm | Φ7mm~Φ9mm | Φ5.5mm~Φ7mm |
| Contact diameter × number | Φ2.7×2 | Φ2.7×3 | Φ2.7×4 | Φ1.8×5 | Φ1.8×7 | Φ1.0×9 | Φ1.0×12 |
| Rated Current (A) | 20A | 12A | 5A |
| Operating voltage (AC.V.rms) | 500V | 400V |
| Contact resistance | <1mΩ | <2.5mΩ | <5mΩ
/ |
| Temperature rise | 20A contact temperature
below 30℃,
25A......40℃↓,
30A......50℃↓. | 12A......30℃↓,
15A......40℃↓,
20A......50℃↓. | / |
Withstanding Voltage (AC.V)
1 minute | 2500V | 1500V |
| Insulation resistance | >500MΩ |
| Protection level | IP65/IP67 |
| Durability | ≥500times |
| Working temperature | -40℃~80℃ |
| Connecting mode | 1/4 bayonet connecting type |
| Assembly wire | Soldering/Crimping |
| MATERIALS |
| Housing&insulation parts | high-perpormance engineering plastics |
| Hardware | zinc alloy(pearl hard chrome) |
| copper pins | copper alloy
(gold-plated 4U) |
| waterproof cover | Silica gel |
| Flammability rating | UL94-V0 |
Product Description
Customer Feedback
Certification
Company Information
FAQ
Q1. Can I have a sample ?
A1.Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be paid in advance and the cost will be refund after further order.
Q2. What about the production lead time?
A2.It will take about 3 days to 7 days for our standard product .
Q3. Do you have any MOQ (minimum order quantity) limit?
A3.Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A4.We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. Is it OEM available?
A5.Yes. We have rich experience and good ability to put your design and idea into real product, normally it take about 20 to 30 days for new product from mold design to final production.
